Nel primo Bug Mc Elroy la barra dei contatti è formata da una linea posta a 45°, nasce il primo modello denominato MC Elroy 1934.
Come si può vedere, la linea di contatto posta a 45° (unisce il contatto delle linee "-", con il frame ed il contatto dei punti "." ), nel modello 1935 (il secondo bug prodotto da Teodor Mc Eroly) il contatto si modifica ed assume la forma di una V.
Ci sono due versioni del modello Mc 1935, il primo prodotto è stato lo "Shallow Vee", poi sul finire del 1935 Teodor ha modificato i contatti, diminuendo l'angolo di vertice della V , da qui l'appellativo "Deep Vee".
Di Mc 1935, se ne contano poche unità e tra questi, il Deep Vee è quello più raro.
Sotto uno stupendo esemplare, completamente originale di Mc. Elroy modello 1935 "Deep Vee", proveniente dalla collezione di Tom French W1IMQ, ringrazio Tom per avermi dato questa possibiltà.
Dopo molto tempo, sono entrato in possesso della prima versione del Modello 1935, il cosiddetto Shallow Vee.
Vedi sotto, dopo il Deep Vee.
_____________________________________________________
The first semi-manufactured by McElroy is the 1934 model,
(see photo above).
As you can see It has the contact inline placed at 45 ° (unites the lines contact, with the frame and the contact points), in the model 1935, photo under (the second model produced by McEroly) the Contact change and assuming the form of a Vee.
The 1935 model there are two different versions, the first produced was called the
"Shallow Vee", then at the end of 1935 McElroy altered the contacts (closing the angle) hence the nickname of this late 1935 bug is "Deep Vee".
The 1935 key model there are a few units, and between
them, the "Deep Vee" is the most rare.
Under you will see a beautiful specimen, completely original MCElroy model 1935 "Deep Vee", It's come from the collection of Tom French W1IMQ, I thanks Mr. Tom
for give me this great opportunity.
After more time I've add teh first 1935 Mc Key, so called Shallow Vee.
See under the Deep Vee model.
July 2014. Update 29018

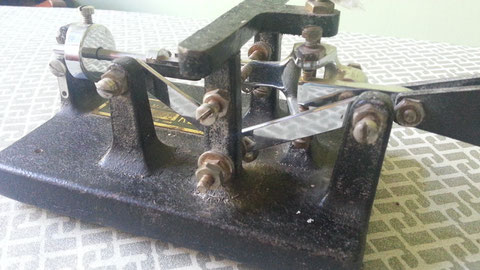

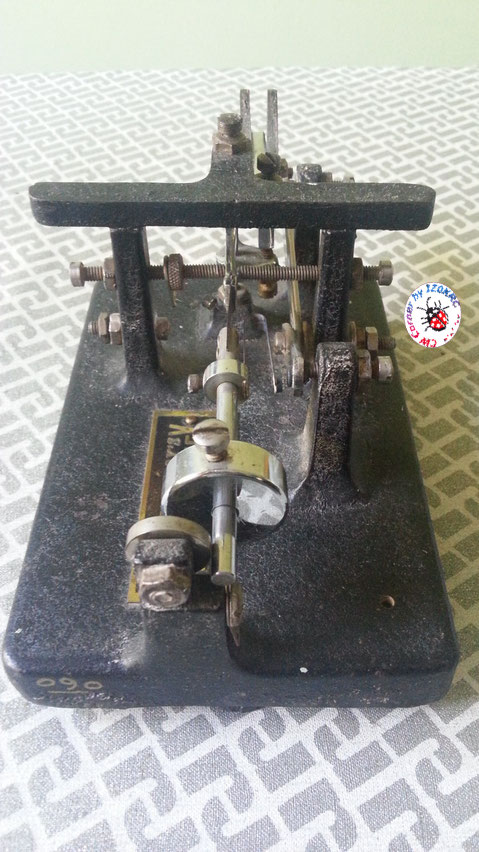

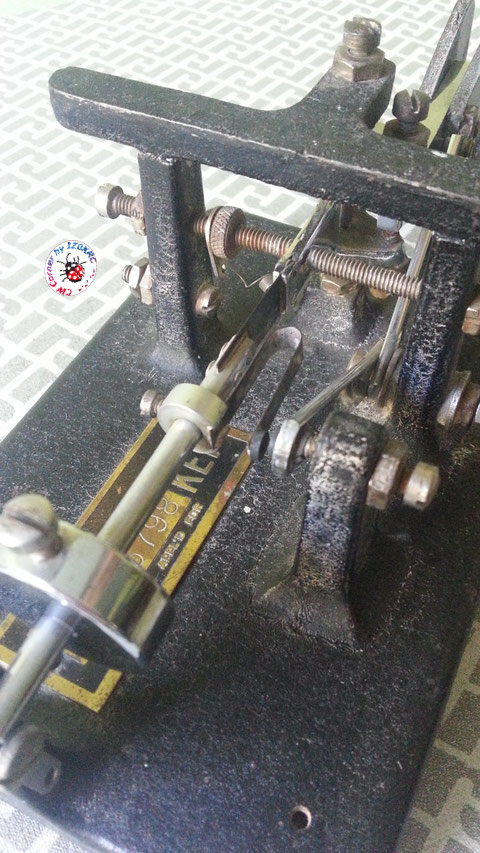

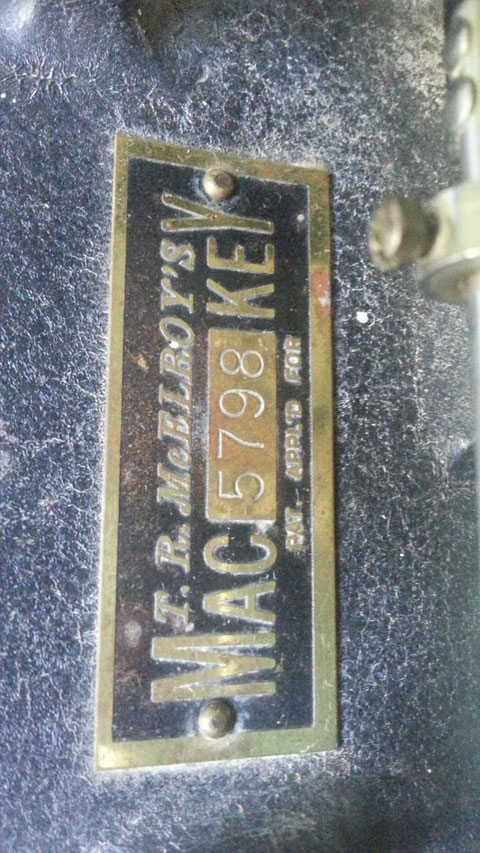

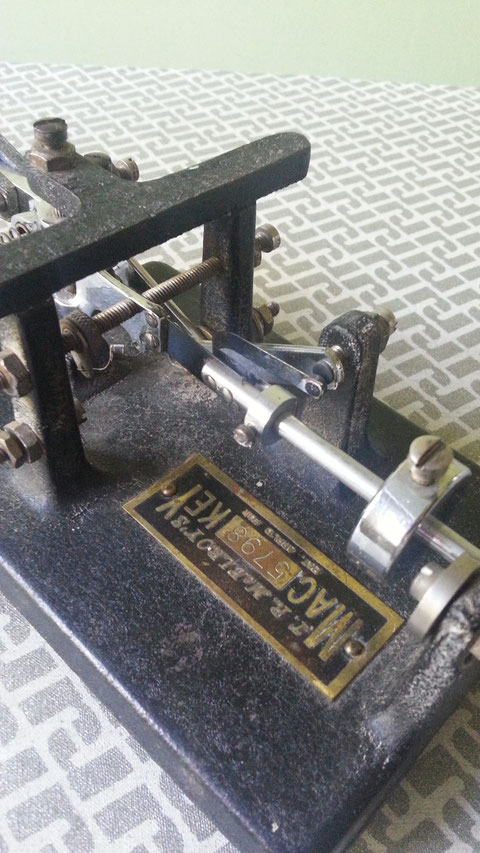

Mc. Key 1935 - Deep Vee model.

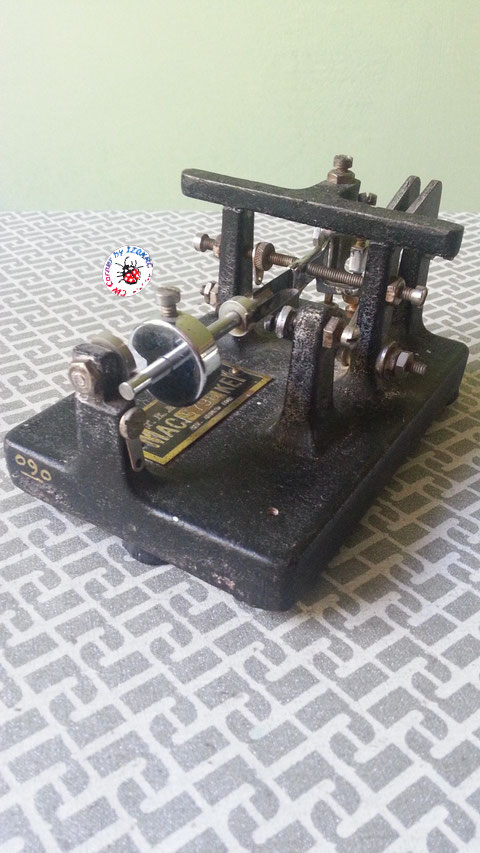

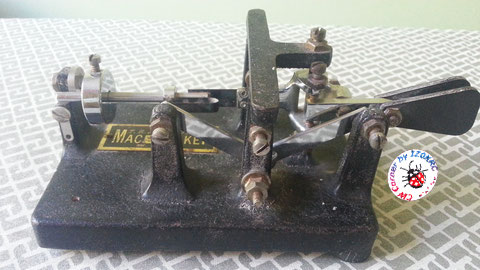

Mc. Key 1935 - Shallow Vee model.
add. 20 Oct. 2018
